MATCH BALL · 6 BONDED PANELS

VELARC HOOK

The steady one.

€149€44

Drag to turn it. Flick to spin it.

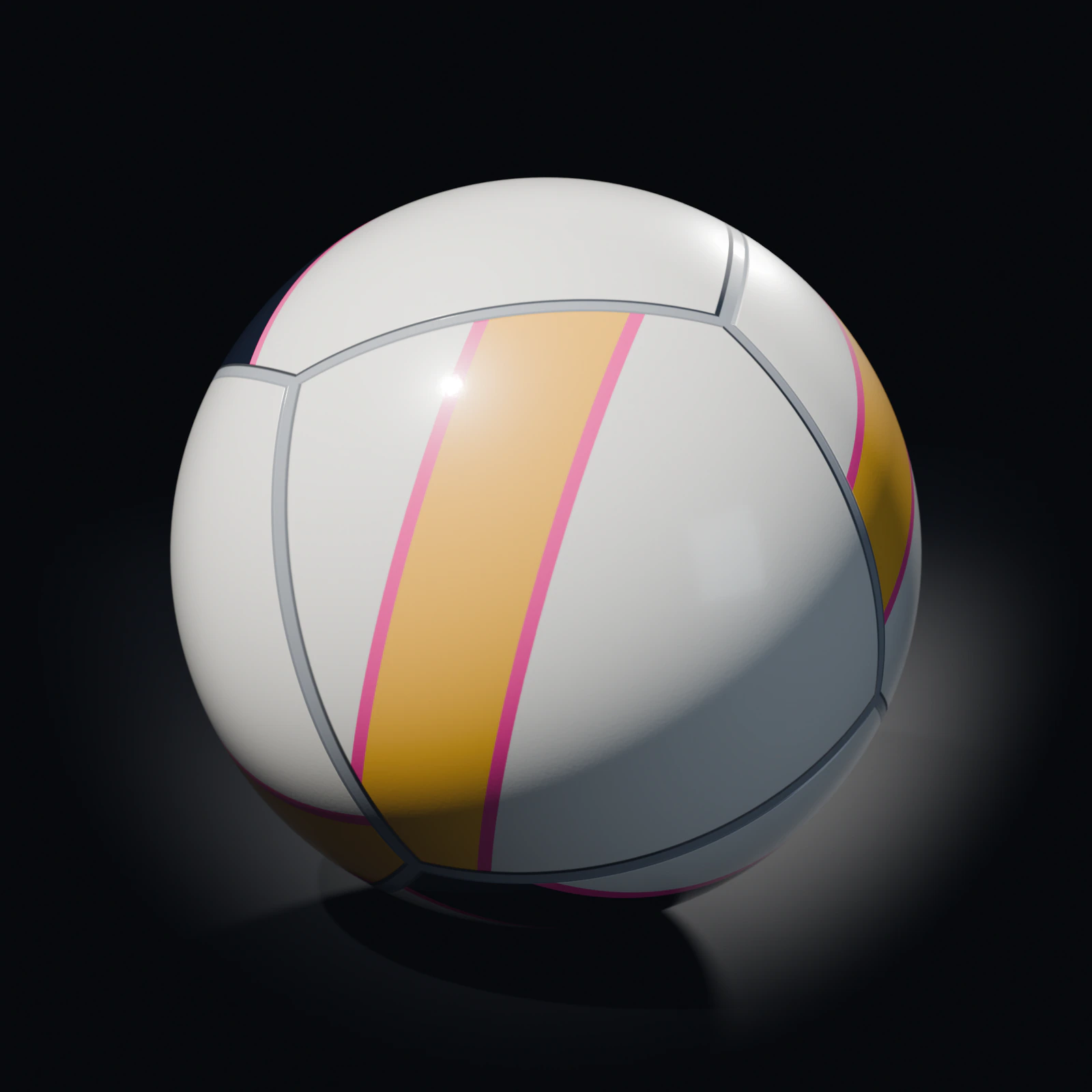

Velarc Hook match ball, white pinwheel panels with amber and navy bands, on a dark studio floor

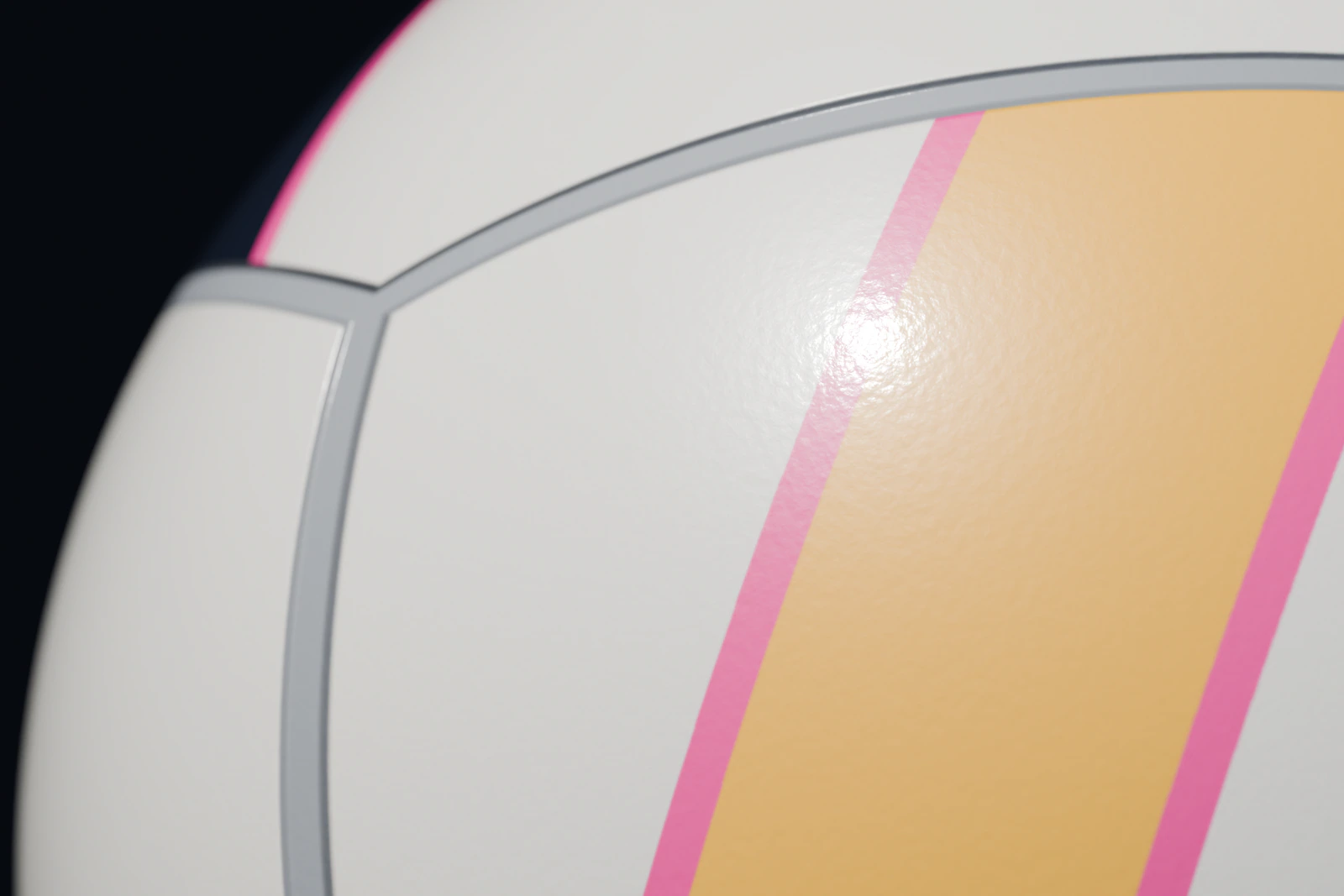

Close-up of the Hook’s bonded grooves and an amber band

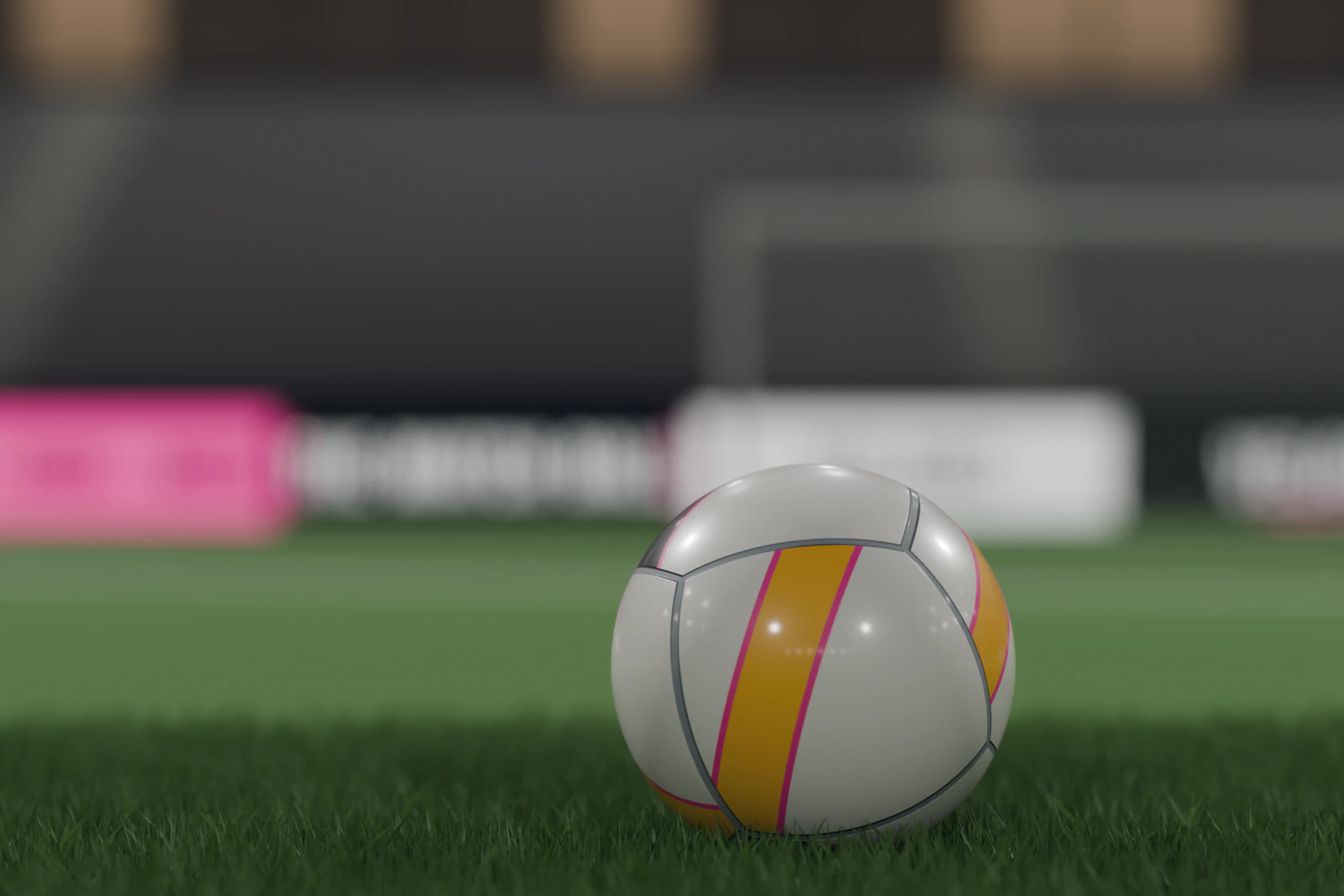

Velarc Hook on the free-kick spot under floodlights

HOW THE HOOK FLIES.

Set a strike from our free-kick spot, 24 m out and left of centre. The Hook is drawn solid; the Keel and the Moth take exactly the same strike as outlines.

Speed off the boot94 km/h

Spin9 rev/s

goal line5 m10 m15 m20 m25 mTOP VIEW

1 m2 m3 m4 mSIDE VIEW · HEIGHT ×2

	Time to goal	Bend	Speed at goal	Spread
Keel	1.29 s	1.3 m	58 km/h	–
Hook	1.29 s	1.3 m	58 km/h	–
Moth	1.31 s	0.9 m	52 km/h	–

Fig. 1: Each strike is aimed for the far top corner with the Keel; the other balls take exactly the same strike. Model fitted to published wind-tunnel data for 6-panel thermally bonded balls (Keel: 32-panel stitched balls; Moth: smooth balls with little seam). Sources on the Flight Lab page.

CONSTRUCTION

SIX PANELS, BONDED.

Six pinwheel panels, heat-bonded instead of stitched, with 3.32 m of grooves 1.56 mm deep where the seams would be. The deep grooves trip the air earliest of the three: its drag is lowest at 64 km/h. One band crosses each panel; with spin, the bands turn into rings you can count.

SPEC SHEET

PRODUCT

Size	5 (Match) · 5 or 4 (Club)
Circumference	68.5–69.5 cm
Weight	420–440 g
Pressure	0.8–1.0 bar
Panels	6
Build	Thermally bonded
Seam	3.32 m, 1.56 mm deep
Cover	Polyurethane
Bladder	Latex (Match) · Butyl (Club)
In the box	Ball and inflation needle

FLIGHT (model, sourced)

Lowest drag at	64 km/h
Drag at 101 km/h	3.5 N
Curled strike, 94 km/h and 9 rev/s from 24 m	1.3 m bend, 1.29 s to goal
Driven strike, 112 km/h, no spin	0.933 s to goal
Half pace, 76 km/h, no spin	1.46 s to goal
No-spin spread at 83 km/h from 25 m	0.12 m
